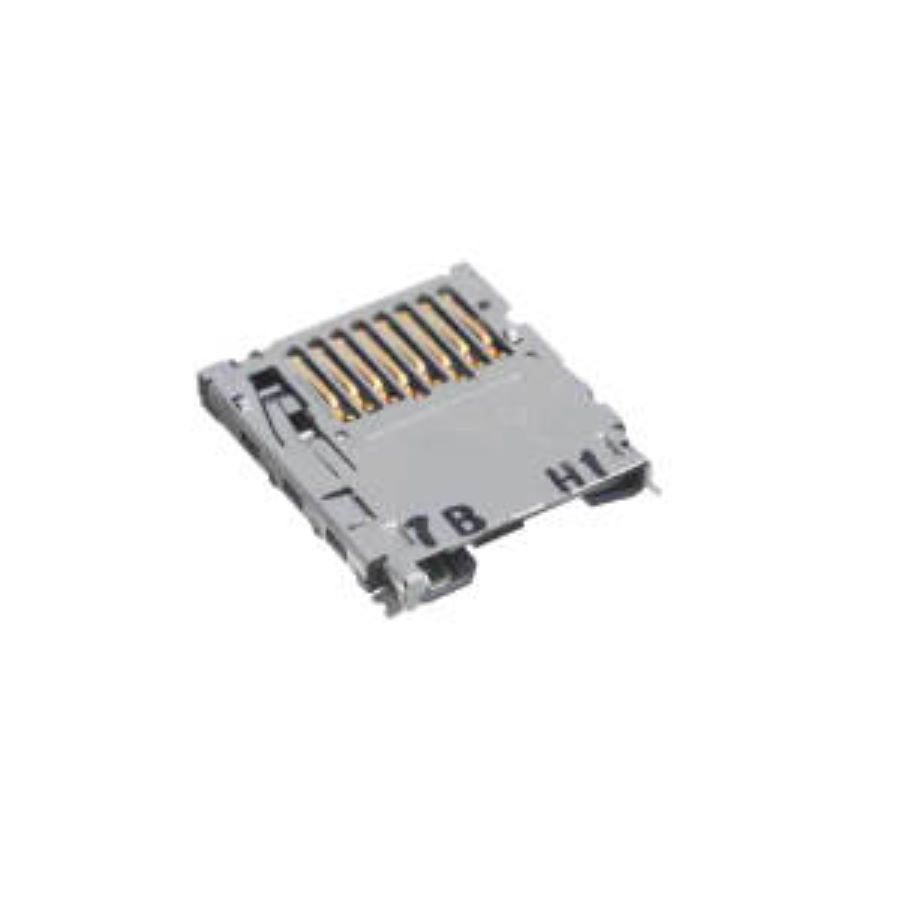

DM3BT-DSF-PEJS
Manufacturer:
Hirose Electric
Mfr.Part #:
DM3BT-DSF-PEJS
Datasheet:
Description:
Memory Connectors SMD/SMT Number of Positions:8 Connector, Socket
| Parameter | Value |
|---|---|
| Length | 13.85 mm |
| Width | 16.05 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Height | 1.83 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 1.83 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Manufacturer Package Identifier | DM3BT-DSF-PEJS |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.1 mm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Memory Type | FLASH |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Female |
| Number of Contacts | 8 |
| Connector Type | Connector, Socket |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Resistance | 100 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Black |
| Plating Thickness | 30 nm |
| Contact Voltage Rating (AC) | 125 V |
| Schedule B | 8536695050 |
| Contact Pitch | 1.1 mm |
Stock: 12
Distributors
pcbx
pcbxUnit Price$4.05254
Ext.Price$4.05254
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.05254 | $4.05254 |
| 10 | $3.56928 | $35.69280 |
| 25 | $3.25965 | $81.49125 |
| 50 | $2.97688 | $148.84400 |
| 100 | $2.71862 | $271.86200 |
| 300 | $2.64965 | $794.89500 |
| 500 | $2.58243 | $1291.21500 |
| 1000 | $2.52113 | $2521.13000 |
